| Frame: | NS Bikes E-fine AL w/ 160mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, Shimano ep8 drive unit, integrated Shimano battery hight-capacity |
| Fork: | Fox Performance 38 Float Grip, 170mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset |
| Rear Shock: | Fox Performace Float X2 2pos-Adj Trunnion, Evol LV, 205x65 |
| Headset: | GW integrated tapered IS42/IS52, sealed bearings |
| Stem: | NS Bikes Quantum Lite 45mm, 35 |
| Bars: | NS Bikes 35, 800mm, 20mm rise |
| Front Brake: | Sram Code R, 200mm |
| Rear Brake: | Sram Code R, 200mm |
| Rear Mech: | Shimano XT RD-M8100, 12spd |
| Shifters: | Shimano Deore XT SL-M8100, Rapidfire Plus, 12spd |
| Speed: | 12 |
| Rims: | NS Enigma Rock 29” front, NS Enigma Rock 27,5” rear, 32h, tubeless ready |
| Front Hub: | NS Bikes Rotary 110x15mm Boost (sealed bearings) |
| Rear Hub: | NS Bikes Rotary Cassette 148x12mm Boost (sealed bearings) |
| Spokes: | Spokes w/14mm nipples |
| Front Tyre: | Maxxis Assegai MaxxGrip 3C DD TR 29x2.50 |
| Rear Tyre: | Maxxis Assegai MaxxGrip 3C DD TR 27.5x2.50 |
| Seat Post: | Race Face Aeffect R S:125, M:150, L: 170mm, 31,6mm |
| Saddle: | WTB Volt Medium Steel SL |
| Chainset: | Shimano FC-EM600 160mm 36t |
| Chain: | Shimano Deore CN-M6100, 12spd |
| Cassette: | Sun Race CS-MZ800, 11-51t 12spd |
| Pedals: | Resin Platform |
| Battery (Wh): | SHIMANO STEPS: BT - E8036, Capacity 17.5 (Ah) / 630 (Wh) |
| Motor: | Shimano EP8 |
What are the delivery costs?
We offer Free UK Mainland Delivery on all orders over £20. Products shipped to outlying UK regions are excluded from free shipping.
Standard delivery is normally 2 - 5 working days.
Please view our delivery page for full information on UK and international delivery costs.

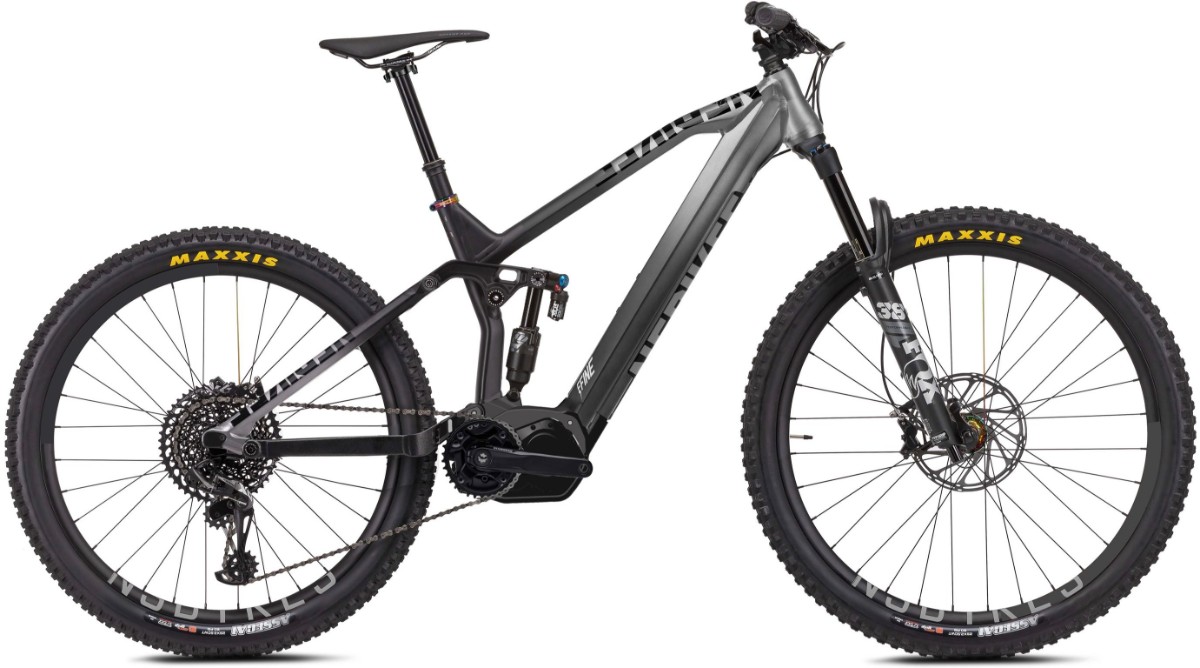

It took NS time to determine the ideal ebike. They realized that besides the motor, geometry and suspension are key. They sought a geometry that suits motor-assisted bikes, not a copy of NS "analog" products.
All that complemented by suspension for a heavier bike, aggressive tires, powerful brakes, and cockpit with a "moto" feel.
NS believe that with E-FINE, they completed their goals.
Regarding the motor, reliability and accessible service are crucial. NS chose Shimano for their shared values and excellent global service. Everyone loved the new EP8 motor from Shimano. It's lighter, has significantly reduced drag, and offers improved ground clearance, low Q-factor, and new 160mm cranks.
The NS team dislikes wimpy rides, so they designed the E-Fine as a robust machine with a Fox Performance 38 fork, powerful brakes, and aggressive tires. Adjustable BB height ensures that everyone finds their perfect riding position.
Occasionally, without notice, manufacturers change product design and/or specifications.
