Frame:	CF3 carbon, Nano Matrix for impact resistance. Internal cable routing, 142 x12mm axle standard, BB86 BB standard, flat mount rear brake with Disc Cooler, 1 1/2" headtube. Fully integrated seat clamp. Max tyre size 700 x 35c (700 x 32c with mudguard)
Fork:	Scultura Endurance CF3 Disc; full carbon, tapered steerer. Disc Cooler; Max tyre size: 700 x 35c (700 x 32c with mudguard)
Headset:	320.52.631
Stem:	Merida Expert SL 2PII; aluminium; -9 degree rise - Length- 90mm (XXS-XS-S), 100mm (M), 110mm (L/XL)
Bars:	Merida Expert SLII; aluminium; 380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)
Front Brake:	Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor
Rear Brake:	Shimano 105; Hydraulic disc brake caliper with Shimano RT64; 160mm rotor
Brake Lever:	Shimano 105
Front Mech:	Shimano 105
Rear Mech:	Shimano 105 Di2
Shifters:	Shimano 105 disc Di2
Speed:	24
Rims:	Merida Expert SLII; 23mm inner rim width; 25mm rim depth; aluminium; Tubeless ready (tubeless tape and valves not included)
Front Hub:	Shimano HB-TC500; 100 x 12mm; 28 spoke; Centerlock
Rear Hub:	Shimano FH-TC500-HL; 142 x 12mm; 28 spoke; Centerlock
Spokes:	Double Butted Black stainless
Front Tyre:	Maxxis RE-FUSE; 700 x 32C; Kevlar bead
Rear Tyre:	Maxxis RE-FUSE; 700 x 32C; Kevlar bead
Seat Post:	Merida Expert CC; 27.2mm diameter; 15mm layback; Carbon
Saddle:	Merida Expert SL; V-mount; including Merida minitool
Chainset:	Shimano 105; FCR7100, 50-34 tooth chainset; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
Bottom Bracket:	SM-BB71-41B, Pressfit 86.5
Chain:	Shimano CN-M6100-12
Cassette:	Shimano CS-R7101; 11-34 teeth; 12 speed
Pedals:	Resin Platform

What are the delivery costs?

We offer Free UK Mainland Delivery on all orders over £20. Products shipped to outlying UK regions are excluded from free shipping.

Standard delivery is normally 2 - 5 working days.

Please view our delivery page for full information on UK and international delivery costs.

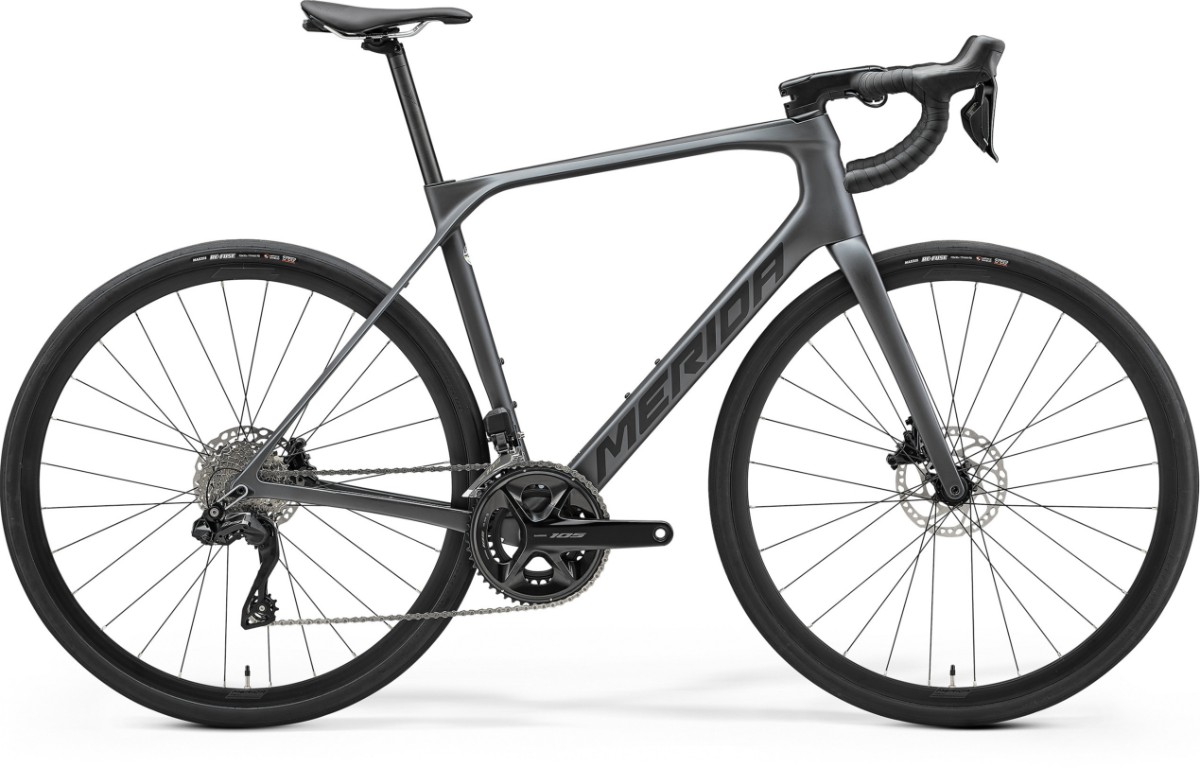

The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike. Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork. There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes. Merida have used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards. All Scultura Endurance are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Occasionally, without notice, manufacturers change product design and/or specifications.
