| Frame: | Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel |
| Fork: | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm |
| Rear Shock: | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload |
| Headset: | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable |
| Stem: | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Bars: | Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake: | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake: | Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever: | Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust |
| Rear Mech: | Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
| Shifters: | Sram Eagle AXS Pod MMX, 12s |
| Speed: | 12 |
| Rims: | e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear |
| Front Hub: | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub: | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub |
| Spokes: | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Tyre: | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tyre: | Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Seat Post: | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Saddle: | Fizik Terra Aidon Slim X5 |
| Chainset: | E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm |
| Chain: | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette: | Sram XS-1275, 10-52T, T-Type, 12s |
What are the delivery costs?
We offer Free UK Mainland Delivery on all orders over £20. Products shipped to outlying UK regions are excluded from free shipping.
Standard delivery is normally 2 - 5 working days.
Please view our delivery page for full information on UK and international delivery costs.

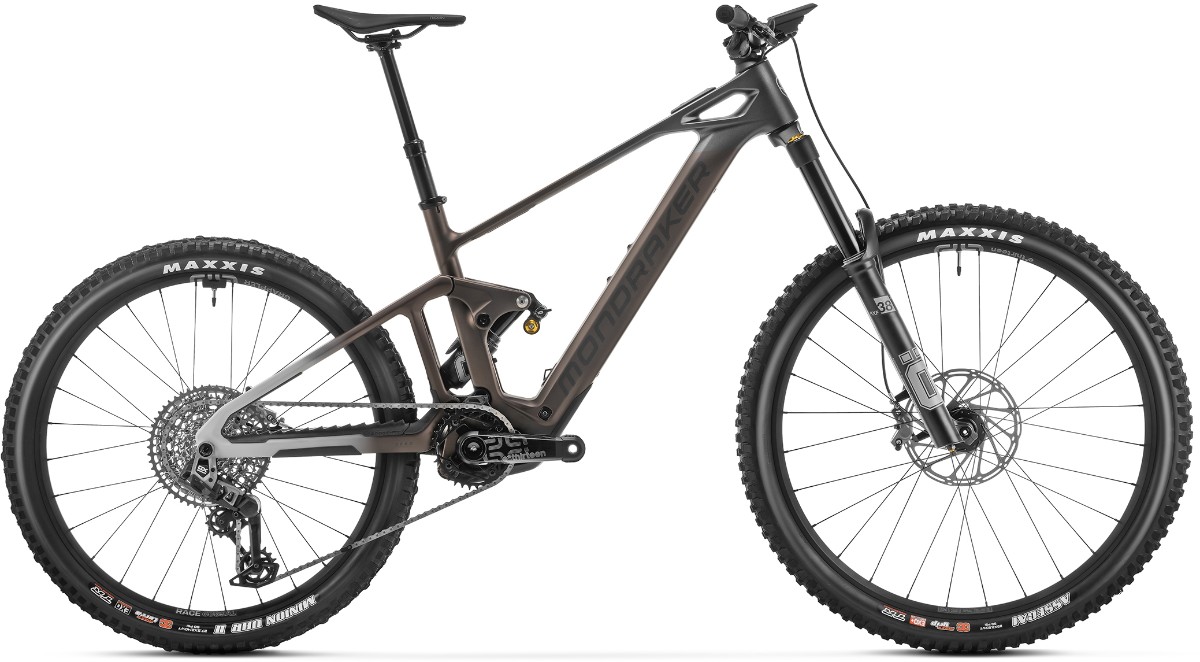

The Mondraker Dune RR is the black sheep of the family, naughty and nice at the same time, the super enduro of light ebikes.
DUNE: SOMETHING SPECIAL IN ITS CLASS
DUNE is the last word in Mondraker’s light ebike range. Taking after the NEAT in some key aspects such as lightness and agility, it takes a different path by offering power and performance similar to longer travel, burlier bikes like the SUPERFOXY and LEVEL.
Weighing in at under 20Kg it’s the waking dream of anyone who’s been torn between a modern enduro bike and a full power ebike but who just couldn’t decide. Now they won’t have to.
The foundation of the DUNE is a Stealth Air Carbon frame weighing in at 2650 grams, combined with the power and light weight of Bosch’s latest offering, the Performance SX. The frame showcases our Updated Zero Suspension and offers 165mm of rear-wheel travel and Forward Geometry specifically tuned for this long-travel hard-hitting light ebike.
Occasionally, without notice, manufacturers change product design and/or specifications.
